MKII Magnetic Drive Pump - Tri-Clamp Head - 1.5" Tri-Clamp Connections
MKII Magnetic Drive Pump - Tri-Clamp Head - 1.5" Tri-Clamp Connections
Regular price
$169.99 USD
Regular price
Sale price
$169.99 USD
Unit price
per
Couldn't load pickup availability
An amazing little pump from "down under". It has been used in the Australian market for years where it has a good reputation. Works like a March or a Chugger but with a sealed case that is more water resistant. This version of the best-selling MKII Magnetic Drive Pump comes with a 3" tri-clamp stainless steel pump head as standard.
Tri-Clamp Head

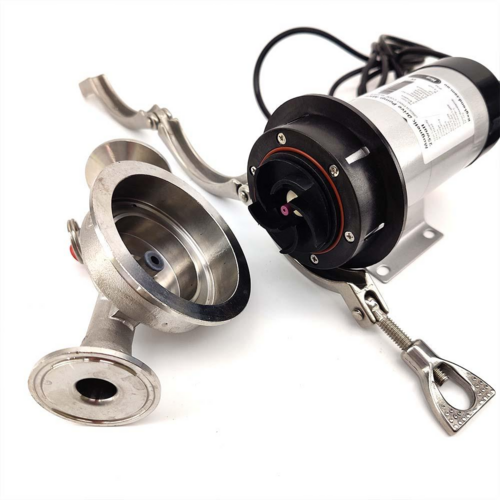

The tri-clamp (TC) head can be removed easily and quickly using a 3" tri-clamp meaning no tools are necessary and you can whip the head of in a flash to clear out spent grain, hop material or even a blockage.
Inline Design
The inline design means the input and output are inline making it easier to integrate into your brewery setup and this it's easy to keep your hoses neat and tidy.
Purge/PRV - Eliminate Cavitation
Unlike some other pumps such as the Blichmann Engineering RipTide pump our pump head uses Cornelius compatible PRV so if you are already in the brewing industry you will have compatible spare parts in your tool kit. The PRV acts as a safety so you do not over pressurize your pump head or brewery system. It can also be used to purge out air practically eliminating cavitation issues.
304 Stainless
The entire pump head is made from 304 Grade Stainless steel so it's highly resistant to chemicals, heat and physical abuse.
Any Angle
As the pump head attaches to the body using tri-clamp the pump head can be rotated at any angle giving you infinite adjustment on the angle at which the hoses connect to the pump. This also makes it easy to configure the plumbing to your unique brewery design.
Features:
110V / 60hz
Max Head: 11.15 ft. (3.4 m)
Max Flow: 5 Gal/min (19L/min)
Max Temperature: 248°F (120°C)
360° rotatable stainless steel pump head
1.5" T.C. ports
Water resistant casing (not waterproof)
