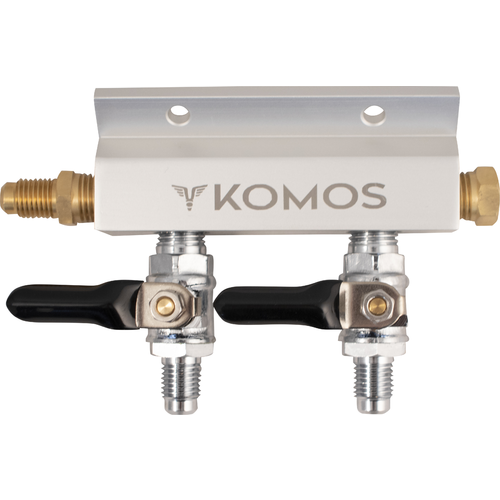

KOMOS® Gas Manifold : 2 Way (Aluminum) 1/4 in. Flare

The KOMOS gas manifold features 1/4" flare gas inlet and check valves for much more flexibilty when choosing your draft line. Use 1/4" or 5/16" gas line with the appropriate Flare Fitting Set, or use EVABarrier Draft Tubing with the appropriately sized Duotight fitting.

The check valves can also be replaced with a Ball Lock Post Bulkhead, allowing for the use of a gas-in ball lock jumper line as a quick connect option.

If more than 4 outlets are needed, join multiple manifolds together with this 1/4" Nipple.

Features:

1/4" Flare connections
1/4" BSP ball valves
Rated to 100 psi
Wall mount holes
Made from aluminum, brass, and stainless steel

Size Overall Length
2-way 5.25"
3-way 7.25"
4-way 9.25"

The above measurements are from the tip for the brass flare inlet to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.
